32RPWD305

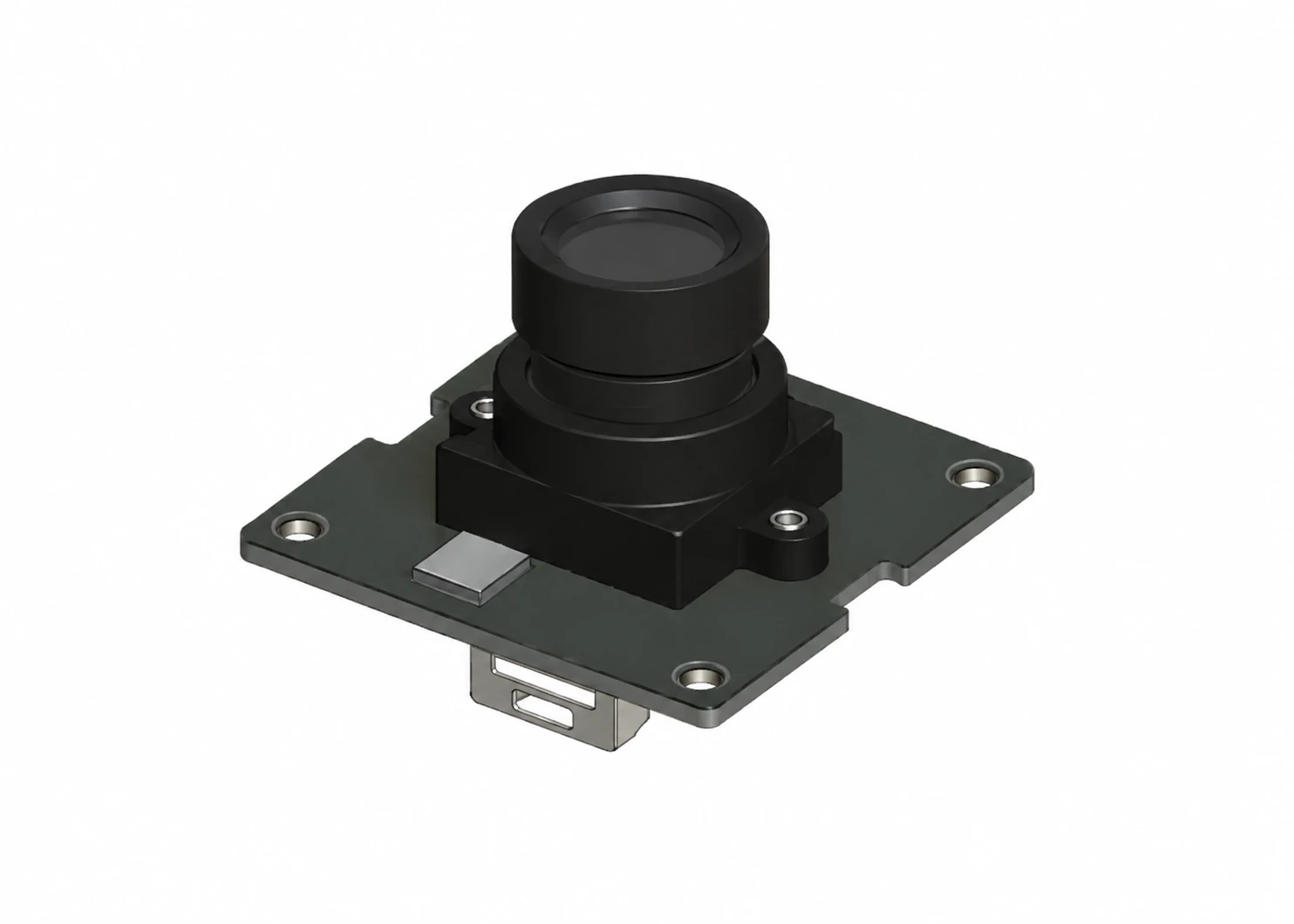

A mono camera module for face recognition.
Product Detail
Technical Specifications
- Resolution
- 2 MP
- Standard Lens
- 4.3mm
- Field of View
- H 65° · V 40°
- Wide Dynamic Range
- 105dB
- Dimensions
- PCB 32×32mm
Product Detail
Configuration Notes
- Optimal recognition distance: 30–150 cm
- frame rate: 25–30 fps
- ultra-thin, 10 mm thick
- optional lenses with 2.8 mm / 6 mm / 8 mm and other focal lengths to change the viewing angle and optimal recognition distance
- cable options: 0.8 m / 2 m / 3 m, and PH2.0/1.25 terminal cables in 20 cm / 60 cm and other lengths.
The catalog retains historical models from the source list. Availability and specifications are subject to project confirmation.
